Laptop Wifi Card Antenna Wires

July 07, 2022 Post a Comment

Here is a link to the service manual for your ideapad. Do a diy set up.

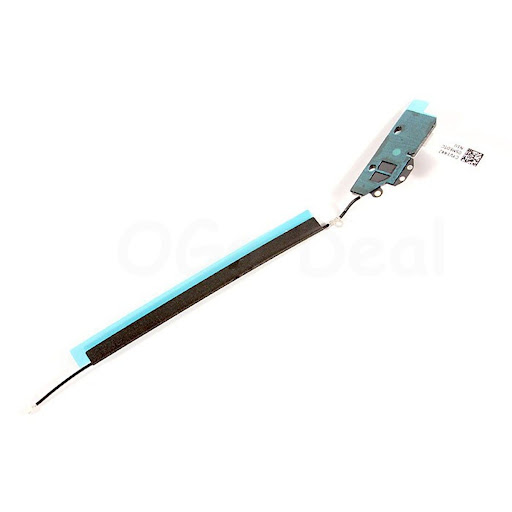

Wholesale iPad 3/4 Wifi and Bluetooth Antenna Flex Cable

1 and 2 on other cards.

Laptop wifi card antenna wires. They are really small, so you wont really notice it:) 2. But you should know, the laptop wire antenna isn't particularly suitable to be used in a desktop. I'm quite skeptical of that.

The only antenna wires i see go to the wifi card. Once in as far as it will go, then place the gold/silver connector end through the whole in the motherboard by the hinge (following other antenna cables) into the wlan bay. Get it as soon as mon, feb 1.

Do a diy set up. If you still need an external antenna, there are most likely 2 options. Such an antenna won't work properly inside a metal case.

I cannot seem to get the wires to snap into place on the card. Should i just add a third wire? The numbers at the end are the min/max/avg for 100 icmp packets between the laptop and the router.

Likely, i have a spare wireless card from another not working toshiba laptop and this card worked perfectly. Also called pci express mini card, mini pci express, mini pcie, mpcie or pem. Sma extension cable pigtail male to female wifi antenna cable rf rg316 coaxial coax jumper fpv sma antenna wire (20 inches (2 pcs)) 4.3 out of 5 stars.

I then wrapped up the antenna, closed and put the 2 scres back in the door i had opened on the bottom. You can find this wireless card by the model number: These cards do have an antenna and the antenna is usually located at the back of your screen.

I want to add an n card it has 3 antenna connector's. Push the antenna end in first and wriggle it in as far as it will go. Congrats, you can now make use of it with a 3rd antenna!

If the connectors are bad too the entire cable can be replaced as well. The internal mpcie wifi cards in modern laptops come with at least two coaxial connectors for antennas, often labeled as main and aux. Thank you ninvin21, jan 10, 2010 #1.

Are the antenna connectors on the new wlan card (is it the same model. I've called into dell parts and the associate said the parts list does not show any antenna wires so it doesn't need any. Open up a computer, remove the existing antenna wires.

Open up a computer, remove the existing antenna wires. Pair internal laptop ngff m.2 mhf4 wireless antenna for wifi bluetooth copper. And replacing those isn't much more work, but it's work worth looking into.

It doesn’t matter which wire goes on which post, however, it is customary to have the white cable antenna attached to main, and the black cable antenna attached to auxiliary (aux) post. You could go black, white, gray. The gray cable not connected to anything is specifically used for the intel wireless card you have.

The case would be a reflector to ground, where only partial transmission would be possible. It doesn't make no difference whatsoever and does not affect the performance of your wireless card whatsoever. The coaxial cables that lead to the internal antennas differ only by color, but doesn't seem to carry any.

I ordered the wifi card and antenna as specified (about $30 usd total on ebay with free shipping). 2 antenna = 4.5 mib/s rx 2.8 mib/s tx 1.0/51.9/3.9 1 antenna = 2.8 mib/s rx 2.7 mib/s tx 1.0/26.5/2.1 the transfer rates are average throughput using samba and measured with netlimiter. The laptop antenna will be built into the laptop lid in most cases, so they can be quite effective (they are designed to present an impedance of 50 ohms) unplugging the wifi card (assuming its a mini pci under a panel on the underside of the laptop) and using a pcmcia one on the side slot may be better, as those are available with an antenna socket.

I'm looking to upgrade a laptop's wifi card, the current card has two antennas (black and white). I simply removed the old card, inserted the new, clipped the old and new antenna in. A couple of questions about laptop internal wifi antennas.

It is interesting that the wlan antenna cables are not listed in the parts inventory in the manual. No matter the brand or model, we all buy laptops for the same reason — mobility. Align the connector over the terminal and push down so the connector speads and snaps over the wifi card terminal.

So it can get pretty frustrating when your laptop wifi card conks out, and you’re left tied to the ethernet. Is this just for better reception? It's a lenovo t440p if that matters, but i think all new laptops are about the same.

This laptop has a separate opening just for wifi card and ram. These cards do have an antenna and the antenna is usually located at the back of your screen. In order to install the wireless card into the slot, just push it into the slot at a 30 degree angle (step 1) and then press on the card (step 2) until it’s locked.

How to install a new wireless wifi pci card in a laptop | ebay they are thin, black and white wires with gold or silver post connectors on the end. The wifi card is pretty easy and cheap to replace. The card recommended for the e7440 is the dw5808 and it does indeed have antenna ports on it.

Free shipping on orders over $25 shipped by amazon. On p.37 it shows how to remove the cable from the card (as you already know). You should really use an external antenna in a desktop computer (with a metal case).

If you still need an external antenna, there are most likely 2 options. Laptop antennas are usually just a copper 'sticker' against the backplate of your screen with a wire running to the module on the motherboard.
